Introduction
Cisco Modeling Labs (CML) 2.8 is now available for free to everyone. This is fantastic news for networking professionals, students, and enthusiasts alike. With this powerful network simulation tool now accessible at no cost, you can build and test complex network topologies directly from your laptop. In this article, we will explore what this means for you and how you can utilize CML 2.8 to enhance your networking skills.
What is Cisco Modeling Labs (CML)?
Cisco Modeling Labs (CML) is a network virtualization platform that allows you to design, simulate, and visualize complex networks. It provides virtual representations of routers, switches, firewalls, and other network devices, enabling you to:
- Test configurations before deployment
- Prepare for Cisco certifications like CCNA and CCNP
- Experiment with network designs in a risk-free environment
Introducing the Free Tier of Cisco CML 2.8
Cisco CML Free Tier Details
Cisco has unveiled a free tier of CML 2.8, which you can download and run without any licensing fees. Here’s what you get:
- Up to Five Concurrent Nodes: Run five devices simultaneously.
- Device Types Included:
- IOS XE Routers and Switches
- ASAv Firewalls
- Linux Nodes
- Full Access to Features: Utilize packet capturing, API integrations, and more.
Limitations of the Free Tier
While the free version is feature-rich, there are some limitations:
- Single-User Access: Only one user can access the platform at a time.
- Limited Device Types: The free tier doesn’t include the full range of Cisco devices.
- Five Device Limit: You’re restricted to five devices per lab, but you can create multiple labs.
Why This is a Game-Changer
Access to Real Exam Devices
The free CML 2.8 includes devices that are identical to those you’ll encounter in Cisco certification exams. This provides an invaluable hands-on experience for:
- CCNA Students: Practice with the same routers and switches used in exams.
- Networking Professionals: Test configurations in a controlled environment.
Legal and Licensed Software
Unlike other simulation tools that may have licensing issues, CML 2.8 grants you:
- Full Legal Entitlement: Use Cisco’s official images without violating any terms.
- Peace of Mind: Focus on learning without worrying about legal repercussions.
Enhanced Learning Experience
With CML 2.8, you can:
- Simulate Real-World Networks: Build complex topologies to mirror real scenarios.
- Perform Packet Captures: Analyze network traffic using tools like Wireshark.
- Connect to Real Devices: Use external connectors to integrate with physical hardware.
How to Get Started with Cisco CML 2.8
Download and Installation

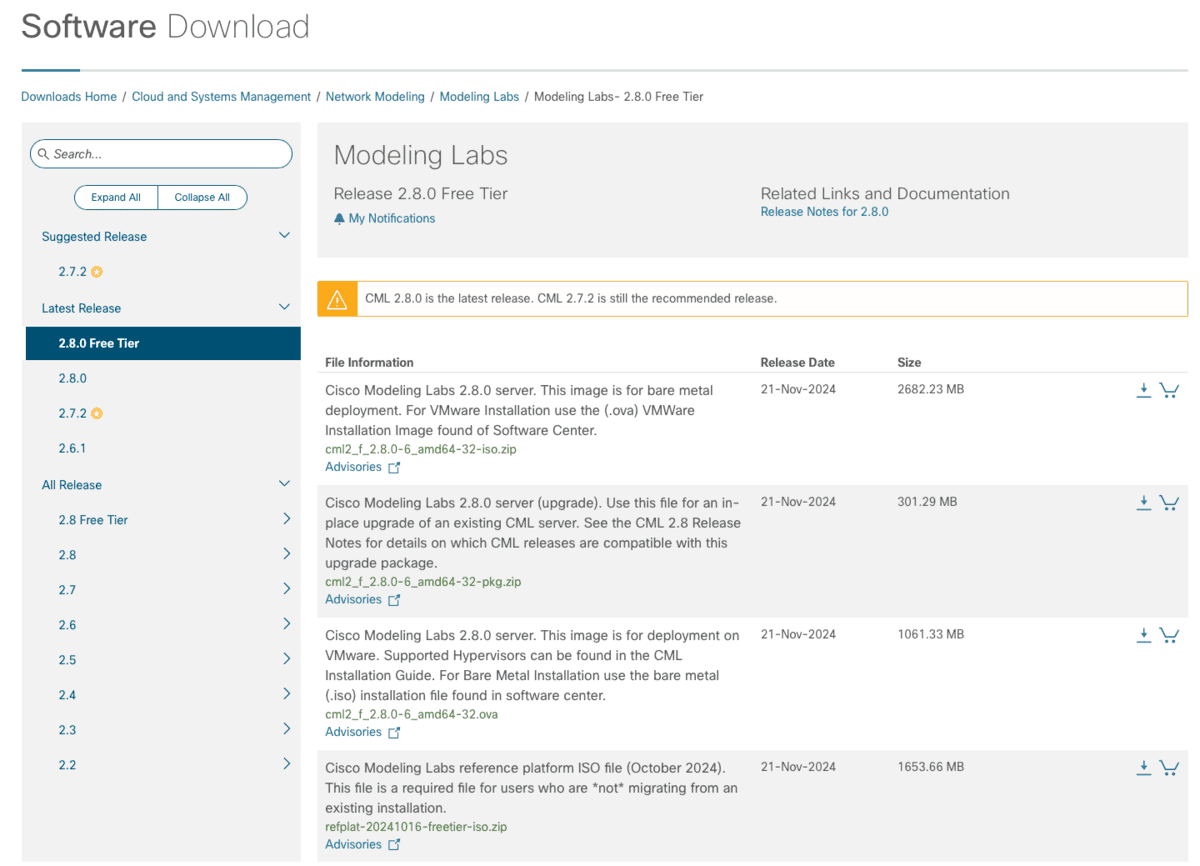

- Visit the Cisco Website: Go to the Cisco CML Download Page.
- Create or Log In to Your Cisco Account: Registration is free and straightforward.
- Download CML 2.8: Follow the prompts to download the software.
- Install on Your Laptop: The installation process is user-friendly, with guided steps.
System Requirements
Ensure your system meets the following minimum requirements:
- CPU: Quad-core processor
- RAM: 16 GB or more
- Storage: 50 GB of free disk space
- Virtualization Support: Enabled in BIOS settings
Exploring Cisco CML 2.8 Features
User-Friendly Interface
- Dashboard View: Access existing labs or create new ones with ease.
- Drag-and-Drop Functionality: Easily add devices and links to your topology.
- Multi-Tab Pane View: Monitor multiple consoles and packet captures simultaneously.
Packet Capture Capabilities
- Real-Time Monitoring: Capture packets on any link within your network.
- Detailed Analysis: Download captures for in-depth examination with Wireshark.
- Troubleshooting: Identify and resolve network issues efficiently.
Device Configuration and Management
- Full Device Functionality: Configure routers, switches, and firewalls as you would in real life.
- Save and Export Labs: Preserve your configurations for future use or sharing.
- Import Custom Devices: Add other Cisco devices if you have access to their images.
What’s New in CML 2.8?
With CML 2.8, Cisco introduces several exciting enhancements that cater to both individual users and enterprise environments. Let’s explore the standout features of this release:
1. Cisco Next-Generation Firewall (FTD) Integration
One of the major highlights of CML 2.8 is the addition of Cisco’s Next-Generation Firewall (NGFW) images. The Firepower Threat Defense (FTD) and Firepower Management Center (FMC) are now natively supported within the platform, allowing users to simulate advanced firewall environments for testing and training purposes.
Key Benefits:
- Out-of-the-box availability: No additional licensing required for basic firewall capabilities.
- Day-zero configuration: Automatically configure FTD and FMC nodes with IP addresses, usernames, and passwords.
- Extended feature set: Apply full licenses for enhanced functionalities like strong encryption and VPN support.
This integration empowers users to create robust network security labs, enabling hands-on experience with Cisco’s latest firewall technologies.
2. Enhanced Node Resource Management
CML 2.8 comes with improved resource monitoring tools, which are crucial for system administrators managing complex labs. The updated Node Resource Usage feature offers insights into CPU, RAM, and disk utilization across all nodes.
Key Features:
- Disk usage tracking: Monitor storage consumption for each node.
- Cluster support: Pin specific nodes to dedicated compute servers for optimized resource allocation.
- Unified visibility: Manage resources across multi-user environments more effectively.
These enhancements are especially beneficial for enterprises using CML in large-scale deployments, ensuring efficient utilization of server resources.
3. LDAP Improvements for Multi-User Access
To streamline user management in enterprise and educational settings, CML 2.8 introduces significant LDAP integration improvements. Administrators can now map LDAP groups directly to CML roles, automating access control and reducing manual management overhead.
Key Enhancements:
- Automatic group mapping: Assign users to CML groups based on their LDAP membership.
- Streamlined onboarding: New users are automatically granted access based on predefined roles during their first login.
This update simplifies the administration of large-scale CML deployments, making it easier to manage access for multiple users.
4. Custom MAC Address Assignment
CML 2.8 allows users to set custom MAC addresses for nodes, which can be crucial for scenarios involving licensing or protocols like Spanning Tree Protocol (STP).
Use Cases:
- Software licensing: Assign static MAC addresses tied to specific software licenses.
- Predictable lab configurations: Ensure consistent behavior in shared labs, particularly for teaching environments.
5. Smart Annotations for Better Lab Documentation
A standout feature in CML 2.8 is the introduction of Smart Annotations, allowing users to dynamically organize nodes and enhance topology visuals using tags.
Key Benefits:
- Auto-updating annotations: Tags automatically adjust to include nodes as you move them around the topology.
- Dynamic grouping: Create tags like “BGP” or “OSPF” to automatically generate visual boundaries around related nodes.
- Customizable labels: Enable or disable labels for better context in teaching and troubleshooting scenarios.
This feature is perfect for educators and network engineers looking to create self-documenting labs, making it easier to follow complex topologies.
Practical Applications
For Students and Educators
- Hands-On Learning: Enhance understanding of networking concepts.
- Exam Preparation: Get ready for certifications like CCNA with practical experience.
- Classroom Integration: Use CML in academic settings for interactive teaching.
For Networking Professionals
- Network Design and Testing: Validate configurations before deploying them in production.
- Skill Development: Stay updated with the latest Cisco technologies.
- Collaboration: Share labs and configurations with team members.
For Enthusiasts
- Experimentation: Try out new network designs without the need for physical hardware.
- Community Engagement: Join forums and discussions to share insights and get support.
Upgrading to a Licensed Version
While the free tier is robust, you may find the need for more resources.
License Options
- Personal License: Supports up to 20 nodes.
- Personal Plus License: Supports up to 40 nodes.
- Enterprise License: Offers advanced features like clustering and supports up to 300 nodes.
How to Upgrade
- Purchase a License: Visit the Cisco website to choose your desired license.
- Enter License in CML: Go to Tools > Licensing in the CML interface.
- Unlock New Features: Your existing installation will now support more devices and features.
Note: If your license expires, CML will revert to the free tier, ensuring uninterrupted access.
Tips for Maximizing Your CML Experience
- Utilize External Connectors: Connect virtual labs to real-world networks.
- Regularly Save Configurations: Avoid losing progress by frequently saving your labs.
- Join the Community: Engage with other users to share knowledge and resources.
- Stay Updated: Keep an eye out for updates and new features from Cisco.
Conclusion
The release of Cisco Modeling Labs CML 2.8 as a free tool is a monumental step in making network simulation accessible to all. Whether you’re a budding network engineer, a seasoned professional, or simply passionate about networking, this tool offers a wealth of opportunities to learn, experiment, and grow.
