Mastering ‘Show Interface Status’ in Cisco: Top 5 Essential Tips

Mastering ‘Show Interface Status’ in Cisco: Top 5 Essential Tips

Introduction

Show interface status—three words that can save you hours of network troubleshooting. If you’ve ever struggled with unexpected network issues, you’re not alone. In 2024, understanding how to effectively use the show interface status command in Cisco devices is more critical than ever. This guide is for network administrators and IT professionals who want to master this essential command. By the end of this tutorial, you’ll learn how to:

  • Efficiently display and interpret interface statuses
  • Troubleshoot network issues like a pro
  • Implement best practices to enhance network performance

Current Industry Context

With the exponential growth of connected devices, networks are becoming increasingly complex. Cisco remains at the forefront of networking solutions, making it vital to understand their systems deeply. Using the show interface status command isn’t just a routine task—it’s a powerful tool for ensuring network reliability and performance.

Basic Concepts Explained Simply

Before diving into the command, let’s break down some key terms:

  • Interface: A physical or virtual port on a Cisco device that connects it to other devices.
  • Status: Indicates whether an interface is operational (up) or not (down).
  • Protocol: The network protocol’s operational status on the interface.
  • Duplex: Mode of communication—full (simultaneous two-way communication) or half (one-way at a time).
  • Speed: The rate at which data is transmitted over the interface.

Pro Tip: Think of interfaces as highways. Knowing their status helps you understand traffic flow and prevent bottlenecks.

Step-by-Step Tutorial: How to Show Interface Status in Cisco

Step 1: Access Your Cisco Device

Connect to your Cisco device via SSH or console cable.

ssh username@your-cisco-device-ip

Expected Outcome: You should see the device’s command-line interface (CLI) prompt.

Step 2: Enter Privileged EXEC Mode

Elevated privileges are required to run diagnostic commands.

enable

Expected Outcome: The prompt changes from > to #.

Step 3: Use the “Show Interface Status” Command

Execute the following command:

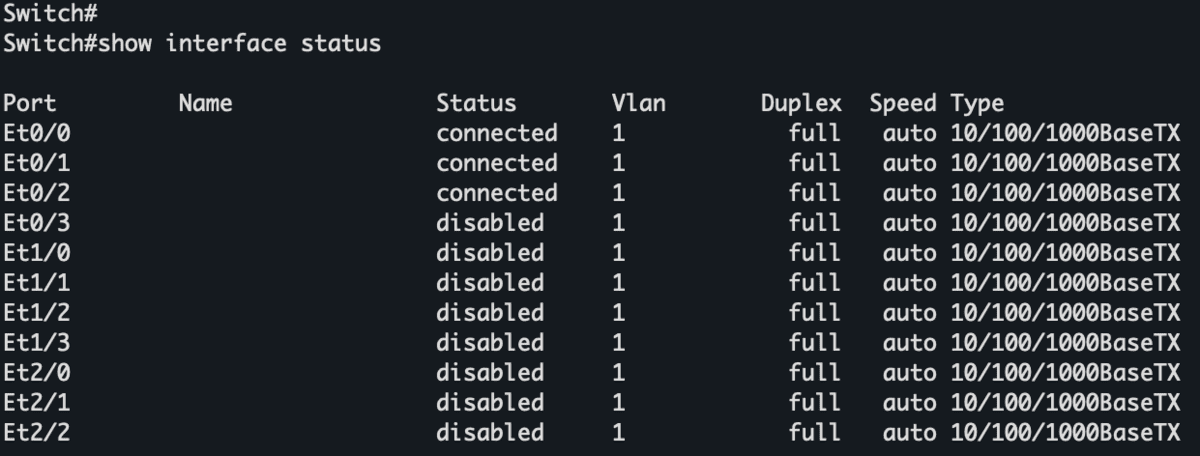

show interface status

Expected Output:

Port      Name               Status       Vlan       Duplex  Speed Type
Gi0/1                        connected    10         a-full  a-1000 10/100/1000BaseTX
Gi0/2                        notconnect   1          auto    auto   10/100/1000BaseTX
Fa0/1                        disabled     20         full    100    10/100BaseTX

Step 4: Interpret the Results

  • Port: Interface identifier (e.g., Gi0/1).
  • Status: Current state—connectednotconnectdisabled, or err-disabled.
  • Vlan: VLAN assignment.
  • Duplex: Communication mode.
  • Speed: Data transmission rate.
  • Type: Interface type.

Notea-full and a-1000 indicate auto-negotiated settings.

Step 5: Check a Specific Interface Status

For detailed information on an interface:

show interface GigabitEthernet0/1 status

Expected Output:

Port      Name               Status       Vlan       Duplex  Speed Type
Gi0/1                        connected    10         a-full  a-1000 10/100/1000BaseTX

Real-World Implementation: Using “Show Interface Status” to Resolve Issues

Case Study: Fixing a Down Interface

Situation: A critical network segment is down, and users are unable to access resources.

Solution:

  1. Display Interface Status:
   show interface status
  1. Identify the Problem: The output shows Gi0/3 status as notconnect.
  2. Check the Specific Interface:
   show interface GigabitEthernet0/3 status
  1. Troubleshoot: Verify physical connections, replace faulty cables, or enable the interface if it’s administratively down.
   configure terminal
   interface GigabitEthernet0/3
   no shutdown
   exit

Outcome: The interface status changes to connected, restoring network connectivity.

Best Practices and Expert Tips for “Show Interface Status”

  • Regular Monitoring: Use the show interface status command routinely to catch issues early.
  • Label Interfaces: Utilize the description command for clarity.
  interface GigabitEthernet0/1
  description Uplink to Core Switch
  • Automate Checks: Implement scripts or use Cisco’s Embedded Event Manager (EEM) to automate status checks.
  • Stay Updated: Keep your Cisco IOS firmware current to leverage new features and security enhancements.

Pro Tip: Combine show interface status with other commands like show interfaces counters errors for comprehensive diagnostics.

Troubleshooting Guide for Interface Status Issues

Common Issues and Solutions

Interface Shows “Notconnect”

  • Cause: Physical disconnection, faulty cabling, or device on the other end is powered off.
  • Solution: Check physical connections, replace cables, and ensure connected devices are operational.

Interface is “Err-disabled”

  • Cause: Security violations or errors like port security breaches.
  • Solution:
  configure terminal
  interface GigabitEthernet0/1
  shutdown
  no shutdown
  exit

Warning: Investigate the root cause before re-enabling to prevent security risks.

When to Escalate

If issues persist after troubleshooting:

  • Hardware Checks: Inspect for hardware failures.
  • Consult Documentation: Refer to Cisco’s official guides.
  • Seek Expert Help: Contact Cisco support or consult with senior network engineers.

Quick Reference Guide for “Show Interface Status” Commands

CommandDescription
show interface statusDisplays status of all interfaces
show interface [interface_id] statusShows status of a specific interface
show interfaces [interface_id] countersDisplays error counters for an interface
configure terminalEnters global configuration mode
interface [interface_id]Enters interface configuration mode
shutdown / no shutdownDisables/enables the interface

Cisco Show Interface Status – Quick Reference Guide

FAQs

Q1: What does the “show interface status” command display?

A1: It provides a summary of all interfaces, including their status, VLAN assignment, duplex mode, speed, and type.

Q2: How do I find interfaces with errors quickly?

A2: Use show interfaces counters errors to display interfaces with error counts.

Q3: Why is an interface in “err-disabled” status?

A3: It has been disabled due to errors or security violations. Investigate and resolve the underlying issue before re-enabling.

Conclusion

Mastering the show interface status command in Cisco devices empowers you to maintain a robust and efficient network. By proactively monitoring interfaces, you can prevent minor issues from escalating into major problems.

Next Steps

  • Practice the Commands: Apply these commands on a test device to become proficient.
  • Expand Your Knowledge: Explore additional Cisco commands for comprehensive network management.
  • Join the Conversation: Share your experiences or ask questions in the comments below.

Enhance Your Network Auditing Skills

Regularly checking interface statuses is just one aspect of maintaining a healthy network. To dive deeper into network optimization, consider conducting comprehensive port audits. Learn how in our guide on How to Conduct a Port Audit on Cisco Switches, where we walk you through identifying unused ports, enhancing security, and improving overall network performance.
