7 Essential OSI Model Layers: Complete Guide for Network Beginners
The OSI model layers form the backbone of modern network communication. In this comprehensive guide, we’ll explore how these seven layers work together to enable seamless data transfer across networks. Whether you’re studying for certification or working in IT, understanding the OSI model layers is crucial for network troubleshooting and design.
Quick Reference: OSI Model Layers at a Glance
| Layer | Name | Key Function | Common Protocols/Standards |
|---|---|---|---|
| 7 | Application | End-user services | HTTP, FTP, SMTP, DNS |
| 6 | Presentation | Data formatting | SSL/TLS, JPEG, PNG |
| 5 | Session | Connection management | NetBIOS, RPC |
| 4 | Transport | End-to-end delivery | TCP, UDP |
| 3 | Network | Routing | IP, ICMP, OSPF |
| 2 | Data Link | Physical addressing | Ethernet, MAC |
| 1 | Physical | Binary transmission | USB, Bluetooth, 802.11 |

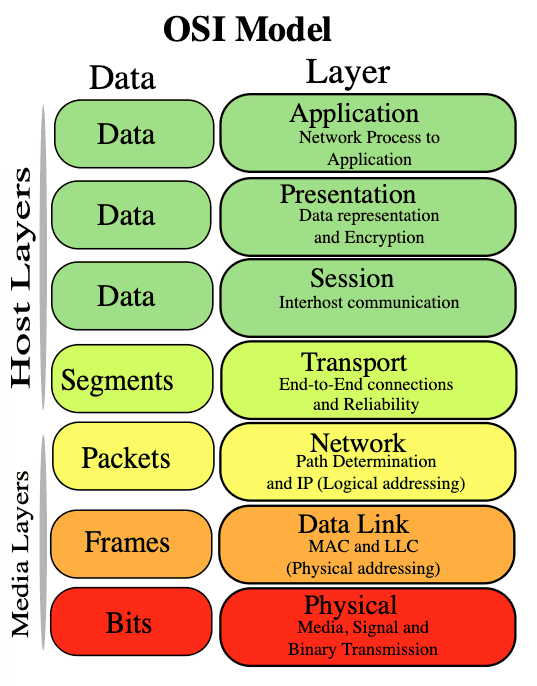

OSI Model Layers
Understanding the OSI Model Layers in Detail
The OSI Model layers, developed by the International Organization for Standardization (ISO), create a standardized framework for network communication. Each layer performs specific functions that support data transmission across networks.
Layer 7: Application Layer
The uppermost of the OSI model layers interfaces directly with user applications:
- Web browsers using HTTP/HTTPS
- Email clients using SMTP/POP3
- File transfers via FTP
- Domain name resolution through DNS
Layer 6: Presentation Layer
This layer handles data formatting and encryption:
- Data encryption/decryption
- Character code translation
- Compression methods
- Graphics formatting
Layer 5: Session Layer
Manages communication sessions between applications:
- Session establishment
- Maintenance and termination
- Authentication processes
- Authorization controls
Layer 4: Transport Layer
Ensures reliable data delivery between endpoints:
- TCP for reliable transmission
- UDP for faster, unreliable transmission
- Error detection and recovery
- Flow control mechanisms
Layer 3: Network Layer
Handles routing between different networks:
- IP addressing
- Packet forwarding
- Route discovery and selection
- Traffic control
Layer 2: Data Link Layer
Manages physical addressing and error detection:
- MAC addressing
- Frame formatting
- Error detection/correction
- Media access control
Layer 1: Physical Layer
Manages the physical transmission of data:
- Cable specifications
- Voltage levels
- Hardware requirements
- Physical topology
Practical Applications of OSI Model Layers
Understanding the OSI model layers helps professionals:
- Troubleshoot network issues effectively
- Design robust network architectures
- Implement comprehensive security measures
- Understand protocol interactions
Common Issues in Different OSI Model Layers
Application Layer Issues
- DNS resolution failures
- Application timeouts
- Protocol compatibility problems
Transport Layer Challenges
- Connection timeouts
- Packet loss
- Performance degradation
Network Layer Problems
- Routing loops
- IP conflicts
- Subnet misconfiguration
Best Practices for Working with OSI Model Layers
1. Systematic Troubleshooting
- Start from Layer 1
- Isolate problems by layer
- Document findings
2. Security Implementation
- Apply security at each layer
- Use defense-in-depth approach
- Regular security audits
3. Performance Optimization
- Monitor each layer
- Optimize critical paths
- Regular maintenance
Summary of OSI Model Layers
The OSI model layers provide a structured approach to understanding network communication. This framework remains essential for:
- Network design and implementation
- Troubleshooting complex issues
- Security planning and execution
- Professional certification preparation
