OSPF Basics – Introduction to OSPF: How It Works and Why It Matters

Ever wonder how data travels so seamlessly across huge networks of routers and switches? The secret sauce often lies in Open Shortest Path First (OSPF), a crucial routing protocol in today’s internet-driven world. Whether you’re a beginner dipping your toes into network design or an experienced admin looking to refine your skills, it’s worth diving deeper into how OSPF keeps everything running like clockwork.

In this guide, we’ll explore why OSPF is such a big deal, break down its fundamental concepts, and talk through real-world insights from hands-on deployments. By the end, you’ll be able to see the big picture of how OSPF works, why it matters, and how you can put it to good use in your own network environment.

Understanding OSPF Fundamentals

OSPF is a link-state routing protocol designed to work with IP networks. Unlike older distance-vector protocols like RIP, which simply count “hops,” OSPF employs an algorithm (Dijkstra’s algorithm) to figure out the quickest route to every node in your network. Because it operates at Layer 3 of the OSI model, OSPF directs network traffic based on IP addresses—making it an essential part of modern, IP-based environments.

A big difference between OSPF and distance-vector protocols is how they share information. OSPF uses something called link-state advertisements (LSAs) to let each router know exactly what the network looks like. Every router keeps its own link-state database (LSDB) and uses that to independently calculate the best route. Since every router has the same view of the network, OSPF tends to converge faster and more accurately than protocols that rely on repeated “hop-by-hop” updates.

OSPF is defined in standards like RFC 2328 (for IPv4). In large, dynamic environments—think multi-floor offices, sprawling data centers, or campus networks—OSPF’s approach to sharing all relevant details among routers really pays off in terms of speed and reliability.

OSPF Versions

There are two main versions of OSPF:

OSPF Version Supports Notable Characteristics
OSPFv2 IPv4 Defined in RFC 2328; widespread in enterprises
OSPFv3 IPv6 Defined in RFC 5340; adapted for IPv6 networks

Regardless of whether you’re working in IPv4 or IPv6, the fundamentals are the same: you’ve got a link-state database, areas, and a “shortest path first” approach.

Key Components of OSPF

Let’s look at a few building blocks that’ll help you understand how OSPF functions day-to-day.

Router ID

  • What It Is: A 32-bit identifier for each router.
  • Why It Matters: This ID must be unique in the OSPF domain. Many pros configure a loopback interface with a dedicated IP for simplicity.
  • Tip: A stable loopback IP as your Router ID helps avoid confusion if physical interfaces go down or change addresses.

DR and BDR (Designated Router and Backup Designated Router)

  • Designated Router (DR): On networks like Ethernet, OSPF elects one router to be “in charge” of sending and receiving LSAs on behalf of all others. This reduces the noise of everyone broadcasting updates to everyone else.
  • Backup Designated Router (BDR): Stands by in case the DR fails, ensuring the flow of LSAs never stalls.
  • Election Factors: OSPF priority (a configurable setting) and, if necessary, the highest Router ID in case of ties.

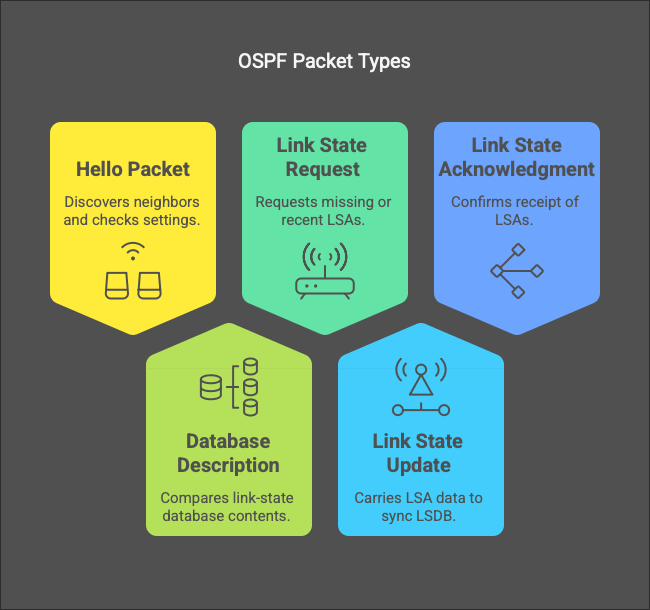

OSPF Packet Types

OSPF routers communicate with each other using five specific packet types. Here’s a brief rundown:

  1. Hello Packet
    • Discovers neighbors and checks if settings match (like hello interval).
    • Sent out at regular intervals (often every 10 seconds).
  2. Database Description (DBD)
    • Lets routers compare the contents of their link-state databases.
    • Summarizes, but doesn’t include, the full LSA details.
  3. Link State Request (LSR)
    • Requested by a router that finds missing or more recent LSAs in a neighbor’s database.
    • Helps ensure everything is synced up properly.
  4. Link State Update (LSU)
    • Carries actual LSA data and keeps the network’s LSDB in sync.
    • This is where most “meat” of the routing info travels.
  5. Link State Acknowledgment (LSAck)
    • Confirms receipt of LSAs.
    • Stops routers from constantly resending the same info.

OSPF Areas and LSAs

A standout feature of OSPF is its ability to organize large networks into areas, each containing its own link-state database. This keeps things efficient and contained.

Single-Area vs. Multi-Area

  • Single-Area OSPF: Easy to set up; everyone shares the same LSDB; great for smaller networks.
  • Multi-Area OSPF: Splits large networks into chunks to cut down on overhead. Each area connects back to Area 0 (the backbone area).

Common LSA Types

OSPF uses different types of LSAs to share specific kinds of information. Below are the big ones:

LSA Type Name Purpose
1 Router LSA Broadcasts information about the router’s interfaces and costs (within 1 area)
2 Network LSA Generated by the DR to represent the network
3 Summary LSA Shares routes between different OSPF areas
4 ASBR Summary LSA Advertises where to find the external-route router
5 External LSA Carries routes external to OSPF (like BGP)
7 NSSA External LSA Used in “Not-So-Stubby Areas” to handle external routes

In simpler setups, you’ll mostly see Type 1 and 2. For bigger or more specialized networks, Types 3, 4, 5, and 7 come into play.

OSPF Adjacency Process

When two routers want to become OSPF neighbors, they go through a series of states:

  1. Down: No hello packets received yet.
  2. Init: One router has seen a Hello, but hasn’t been acknowledged in return.
  3. Two-Way: Each router acknowledges the other—adjacency can form.
  4. ExStart: Figuring out who leads the DBD exchange.
  5. Exchange: Sharing DBD summaries so both routers know what LSAs they lack.
  6. Loading: Requesting those missing LSAs, sending them across.
  7. Full: Both routers have the exact same database; adjacency is complete.

I still remember a time when I spent hours tracking down why two routers wouldn’t move past the “ExStart” state. The culprit? OSPF priorities were set incorrectly, causing constant DR/BDR elections and preventing them from finalizing adjacency. Once we sorted out the priorities, they synced up in no time.

Cost Metric and Path Selection

One reason OSPF is popular is the concept of a cost metric, usually based on interface bandwidth. The default formula often looks like this:

Cost = Reference Bandwidth / Interface Bandwidth

Under many vendor defaults (like Cisco), the reference bandwidth is 100 Mbps. So, a 100 Mbps link gets a cost of 1, a 10 Mbps link a cost of 10, and so forth. But if you’re running Gigabit or 10Gig networks, you’ll want to bump up your reference bandwidth, or else those faster links all appear to have the same cost. Properly tuning these settings ensures OSPF picks the truly shortest (fastest) path.

Personal Experience: My First Major OSPF Rollout

When I first rolled out OSPF in a big environment—spanning multiple data centers and offices—I learned a lot:

  1. Careful Area Design
    • We used a central Area 0 and broke out other sites into different areas. Too many routers in one area can slow down the network, so keep each area to a manageable size.
  2. Tweaking Hello Intervals
    • Adjusting hello and dead intervals in non-critical areas reduced CPU usage without noticeably harming performance.
  3. Monitoring and Troubleshooting
    • Commands like show ip ospf neighbor were my best friend, and capturing Hello packets with a tool like Wireshark was a lifesaver during sticky adjacency issues.
  4. Incremental Rollouts
    • We added new areas step by step, testing each thoroughly before moving on. This staged approach saved our bacon more than once when we ran into minor misconfigurations.

Despite the complexity, a well-thought-out OSPF design truly makes day-to-day management smoother in the long run.

Common OSPF Issues and How to Tackle Them

Even the best protocol can run into snags. Here are a few frequently encountered headaches:

  1. Stuck in ExStart/Exchange
    • Hint: Check OSPF priorities, ensure unique router IDs, and confirm interface types (broadcast vs. point-to-point).
  2. Frequent Route Flaps
    • Hint: Investigate link stability. If the link is up and down, OSPF will flap. Also, verify hello/dead intervals aren’t too aggressive.
  3. High CPU Usage
    • Hint: Large areas with lots of routers can overload a router’s CPU. Splitting big areas into smaller ones helps. Also keep an eye out for link flaps that trigger repeated LSA floods.
  4. Mismatched Area Types
    • Hint: Confirm that each router in a stub or NSSA area is consistently configured. One router with the wrong setting can cause missing routes or partial advertisements.

Security Considerations

Security often takes a back seat when setting up routing protocols, but OSPF is no exception—keeping it locked down is important:

  • OSPF Authentication: At minimum, use MD5-based authentication, especially on critical interfaces.
  • Limit Exposure: Only run OSPF on interfaces inside your network, not on external or internet-facing interfaces.
  • Rotate Keys: Don’t forget to change authentication keys regularly to prevent any potential breaches.

Practical Tips and Best Practices

  1. Have a Clear Area Plan: Over-segmentation can be as bad as no segmentation—strike a balance that keeps areas focused but not too fragmented.
  2. Stay Consistent: Uniform hello/dead intervals, reference bandwidth settings, and authentication configurations go a long way in preventing weird adjacency issues.
  3. Watch Your LSDB: Keep an eye on the size of your link-state database to ensure you don’t have unnecessary LSAs clogging the works.
  4. Use Design Tools: Diagramming your network, either with proprietary solutions or open-source tools like NetBox, helps you quickly visualize where OSPF areas lie and where potential bottlenecks might form.
  5. Test, Test, Test: Before flipping on OSPF across your entire production network, try it in a lab or a limited subset. A small test environment can reveal potential pitfalls.

Wrapping Up

OSPF is a workhorse protocol that powers networks of all shapes and sizes—corporate offices, data centers, and beyond. Its link-state design provides rapid convergence and real-time awareness of the network, making it a crucial part of any administrator’s toolkit.

Here’s why OSPF continues to shine:

  • It Scales: Hierarchical designs with multiple areas keep large networks manageable.
  • It’s Fast: Quick detection of changes and speedy rerouting.
  • It’s Robust: Built-in checks and flooding mechanisms ensure routers always learn about each other’s status.

If you’re new to OSPF, start simple: a single-area configuration might be all you need for a smaller setup. If you’re scaling up, keep area boundaries logical and never forget the backbone area (Area 0). Always test changes carefully, keep an eye on the LSDB, and set up reliable monitoring to catch issues early.

With OSPF in your toolbox, you’ll be ready to handle anything from day-to-day operations to big network expansions—knowing your routing foundation is rock solid. Good luck, and may your routes always converge quickly!

Sources

Here are 5 credible, publicly accessible URL sources related to OSPF.

  1. Cisco OSPF Documentation
    Title: "OSPF Configuration Guide"
    URL: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_ospf/configuration/15-mt/iro-15-mt-book.html
    Use for: Official Cisco OSPF configuration best practices and technical details.
  2. RFC 2328: OSPF Version 2 Standard
    Title: "OSPFv2 RFC 2328"
    URL: https://tools.ietf.org/html/rfc2328
    Use for: Authoritative protocol specifications and algorithmic foundations.
  3. CompTIA’s OSPF Overview
    Title: "What is OSPF? - CompTIA Networking Guide"
    URL: https://www.comptia.org/content/guides/what-is-ospf
    Use for: Simplified explanations of OSPF concepts for learners.
  4. Juniper Networks OSPF Guide
    Title: "Understanding OSPF"
    URL: https://www.juniper.net/documentation/en_US/junos/topics/concept/ospf-overview.html
    Use for: Multi-vendor perspectives and OSPF troubleshooting tips.
  5. GeeksforGeeks OSPF Tutorial
    Title: "Open Shortest Path First (OSPF) Protocol"
    URL: https://www.geeksforgeeks.org/open-shortest-path-first-ospf-protocol-fundamentals/
    Use for: Practical examples and comparisons with other protocols.
